Time and Frequency Standard Station Information

Last update: June 24, 2022 21:25 UTC (3a8d52d62)

gif

From NBS Special Publication 432 (1979 edition, now out of print)

NBS Special Publication 432 (current edition)


The following data were obtained from the International Frequency List published by the ITU and other sources.

Station Frequencies Coordinates

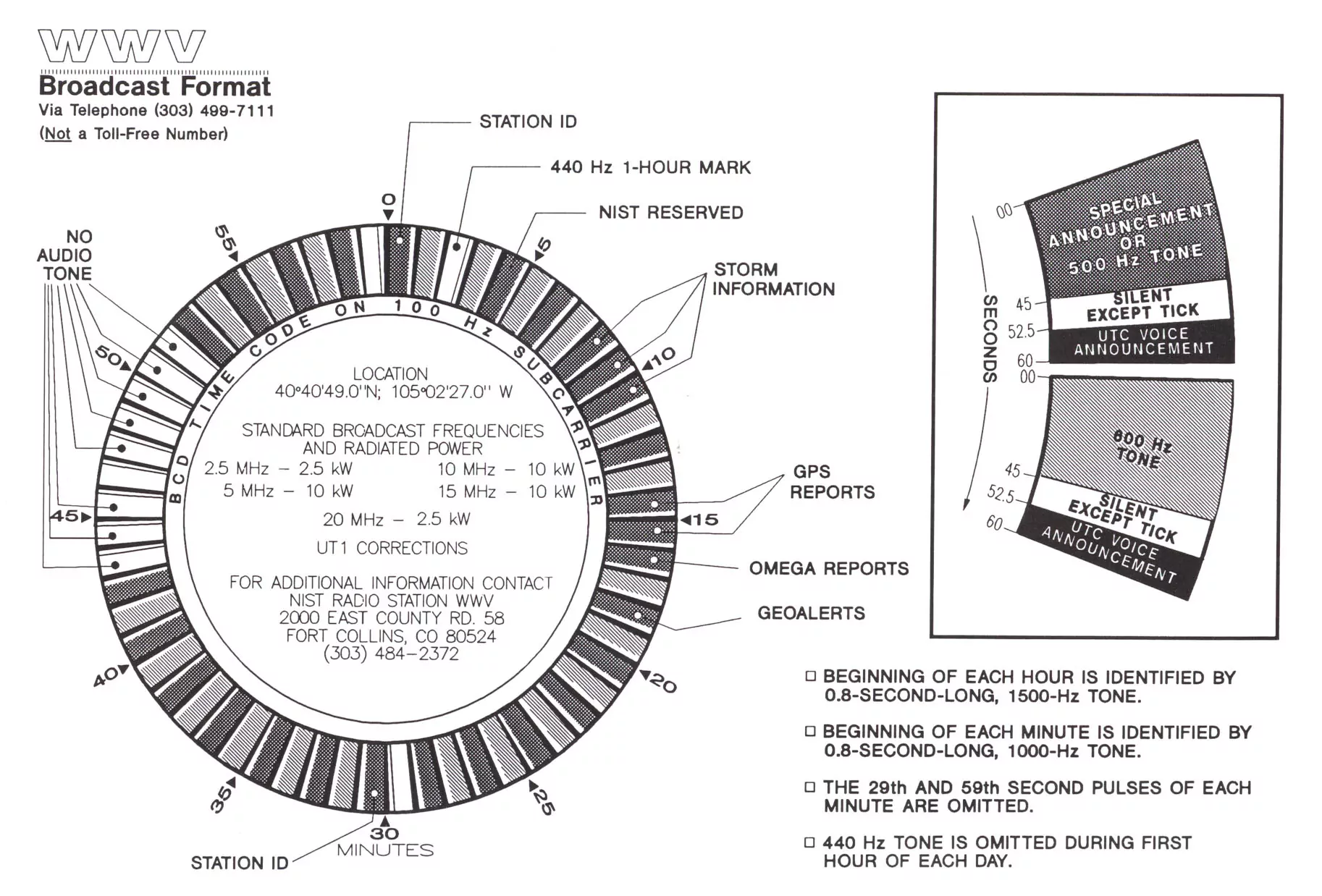

WWV Ft. Collins, CO 2.5/5/10/15/20 MHz 40° 40' 49.0" N, 105° 2' 27.0" W
WWVB Ft. Collins, CO 60 kHz 40° 40' 28.3" N, 105° 2' 39.5" W

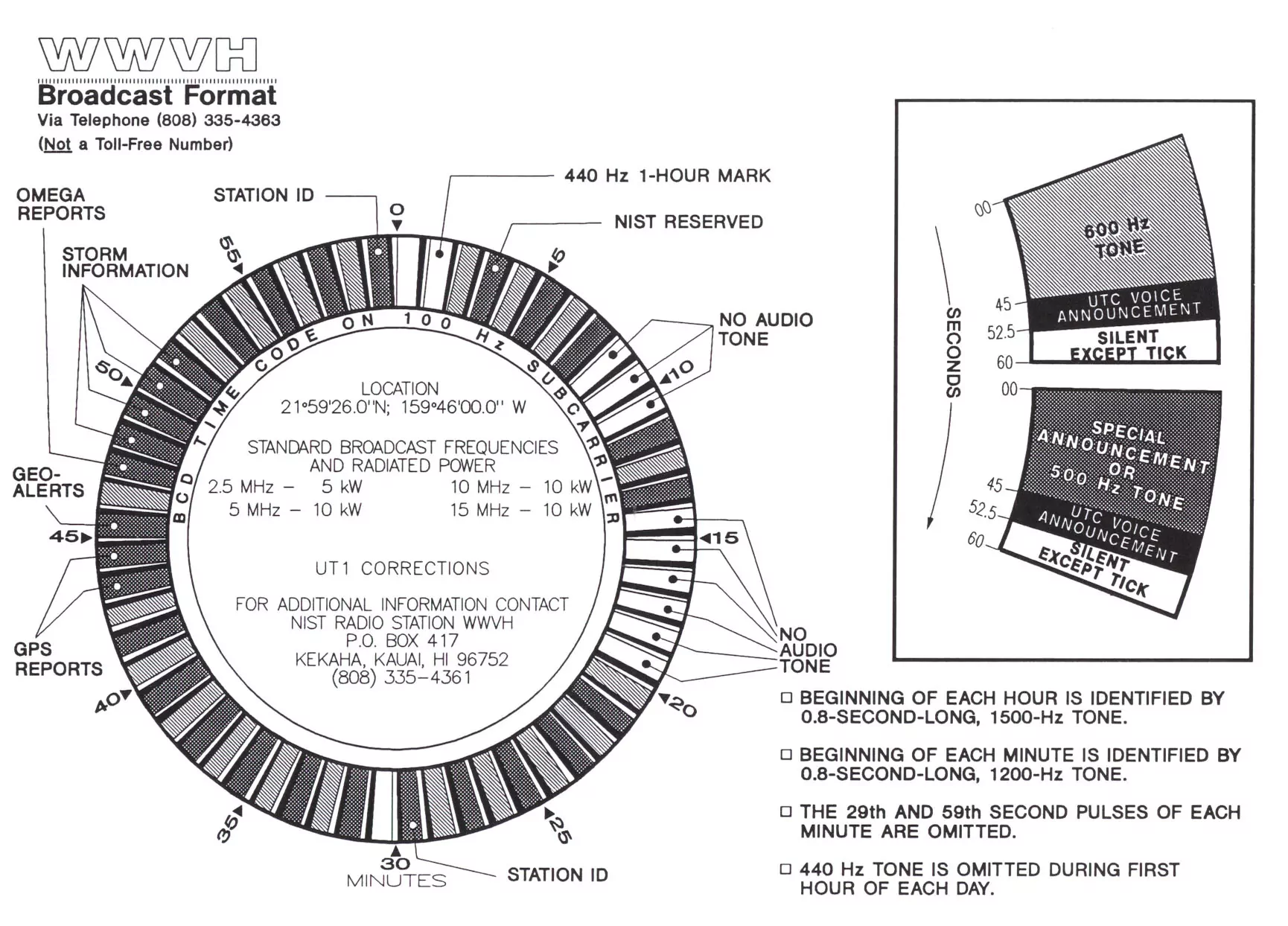

WWVH Kauai, HI 2.5/5/10/15 MHz 21° 59' 26.0" N, 159° 46' 0.0" W
CHU Ottawa, CA 3330/7850/14670 kHz 45° 18' N, 75° 45' N
DCF77 Mainflingen, DE 77.5 kHz 50° 1' N, 9° 0' E
MSF Anthorn, UK 60 kHz 54° 55' N, 3° 15' W
TDF Allouis, FR 162 kHz 47° 10' N, 2° 12' E
JJY Fukushima, JP 40 KHz 37° 22' N, 140° 51' E
JJY Kyushu, JP 60 KHz 33° 28' N, 130° 11' E
HBG Prangins, HB 75 KHz 46° 24' N, 6° 15' E

Additional Information
